Elektrimootorratas
Light Bee X ja Light Bee X L1E/BKauba transport üle eesti!

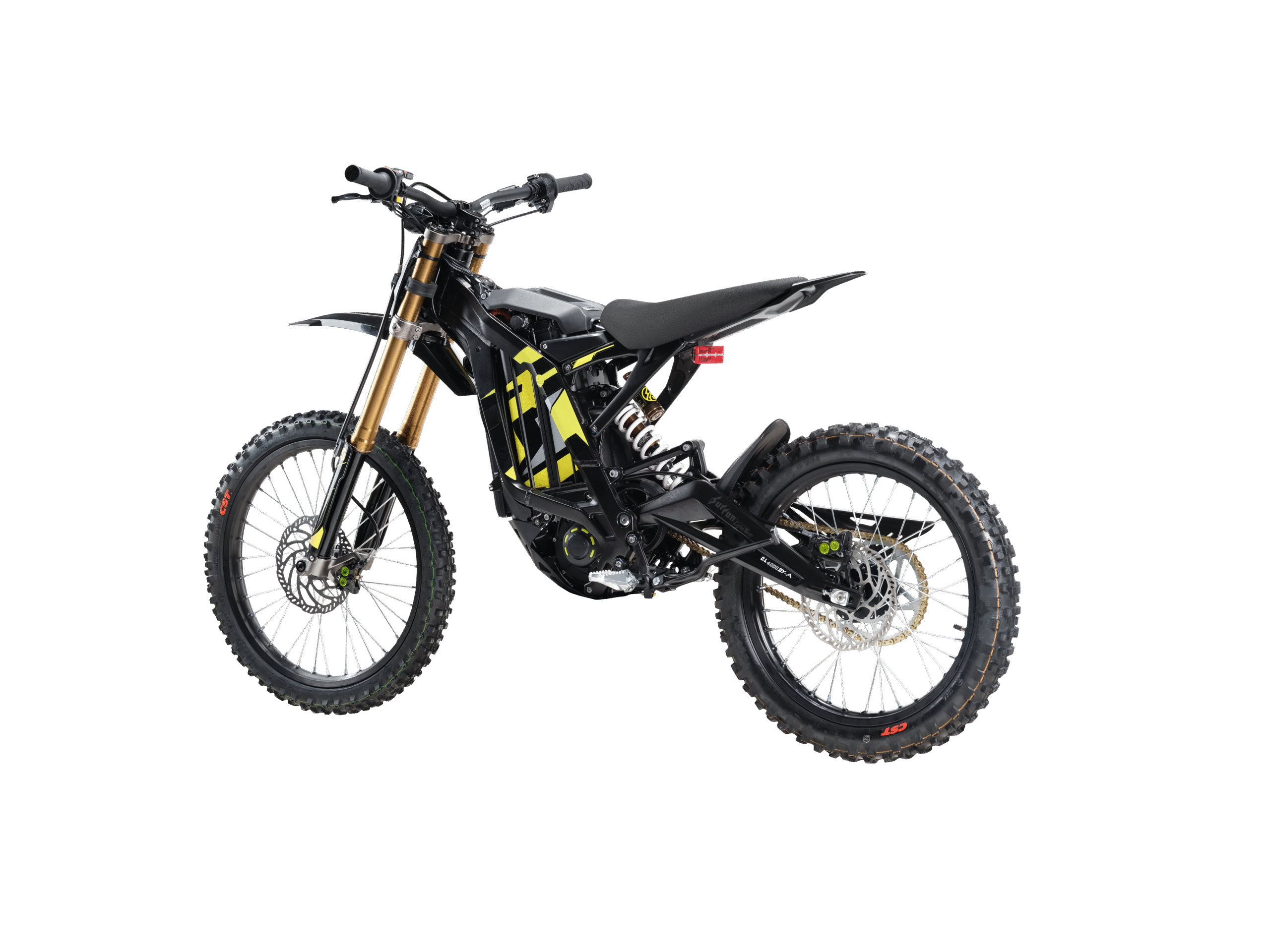

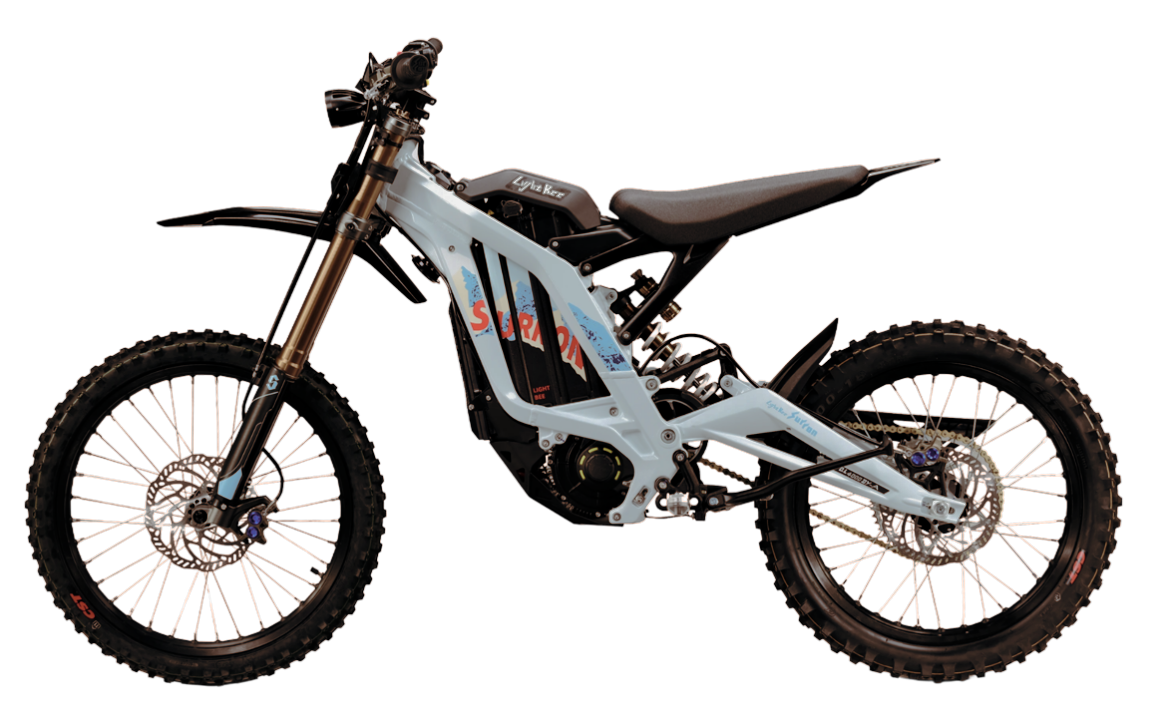

Sur-Ron Light Bee X pakub tippklassilist võimsust ja tasemel juhitavust. Light Bee X elektrimootorrattad on toeka ehituse ja uuenduslike tehnoloogiliste lisadega. Olemuselt ongi Light Bee X pigem nagu elektriliselt motoriseeritud Off-Road ratas.
Light Bee X mudelid on alumiiniumraamiga ja kahekambrilise, reguleeritavate hüdrauliliste teleskoopamortidega rattad. Light Bee X mudelid on varustatud võimsate LED-tuledega nii ees kui ka taga, digitaalse LCD ekraani ja paljude muude kaasaegsete tehnoloogiatega.
Hind 4 850 € Light Bee X ( ei ole tänavalegaalne ega kõnniteedel liiklemiseks )

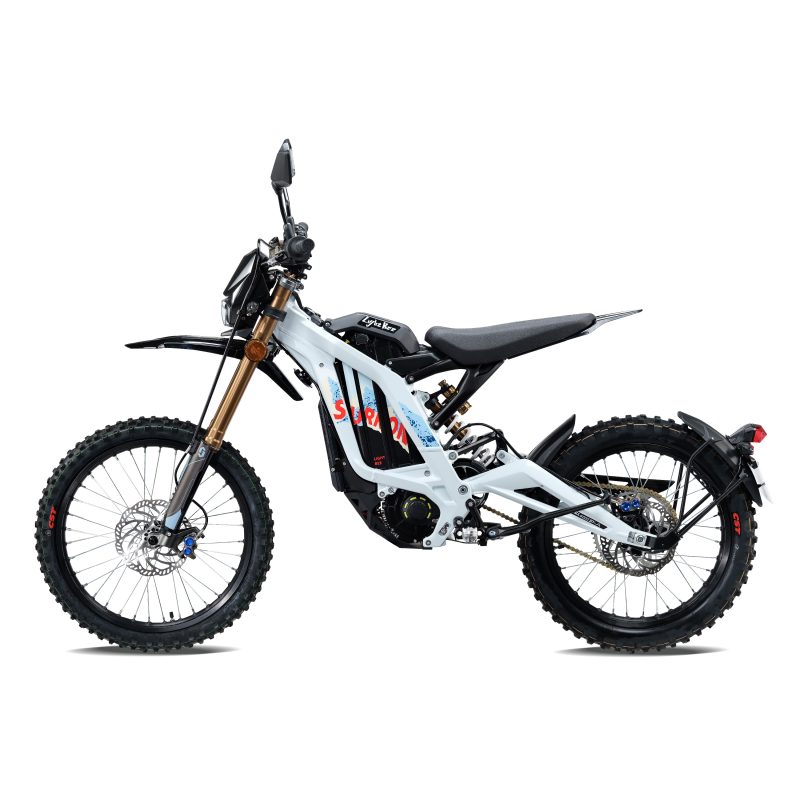

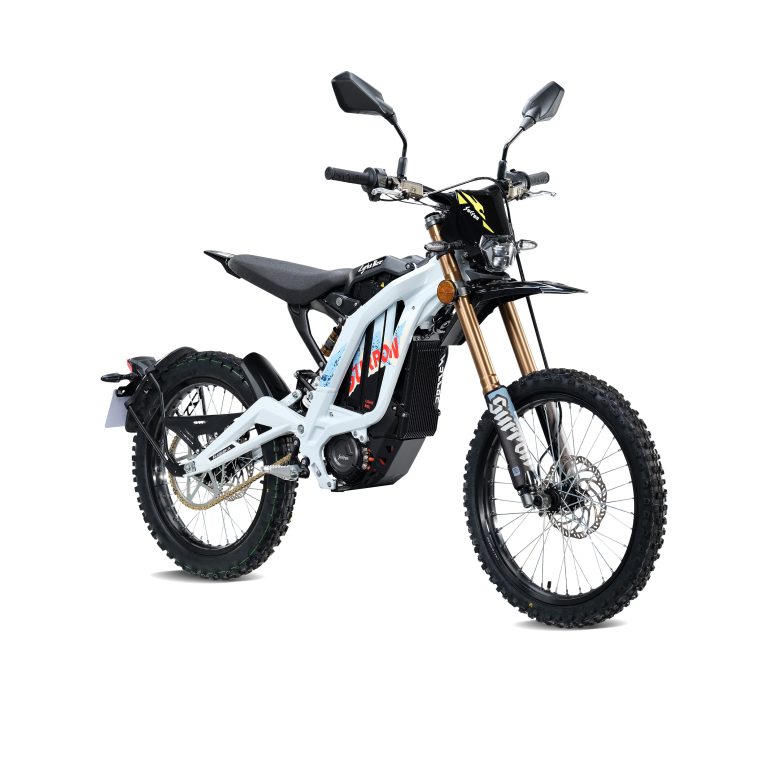

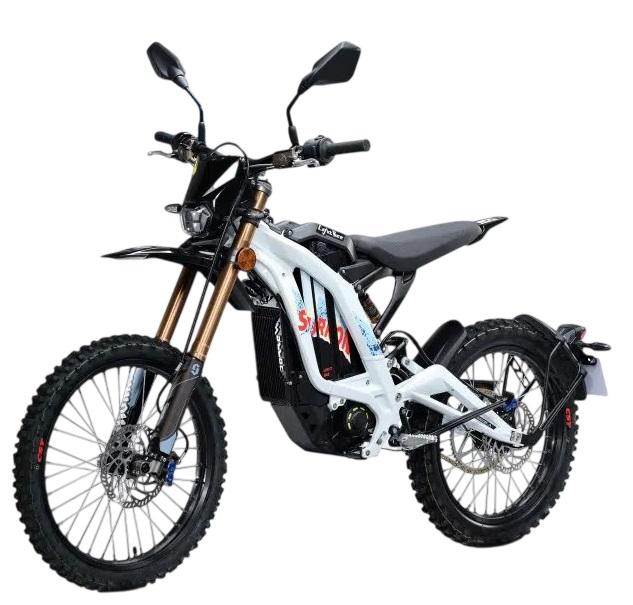

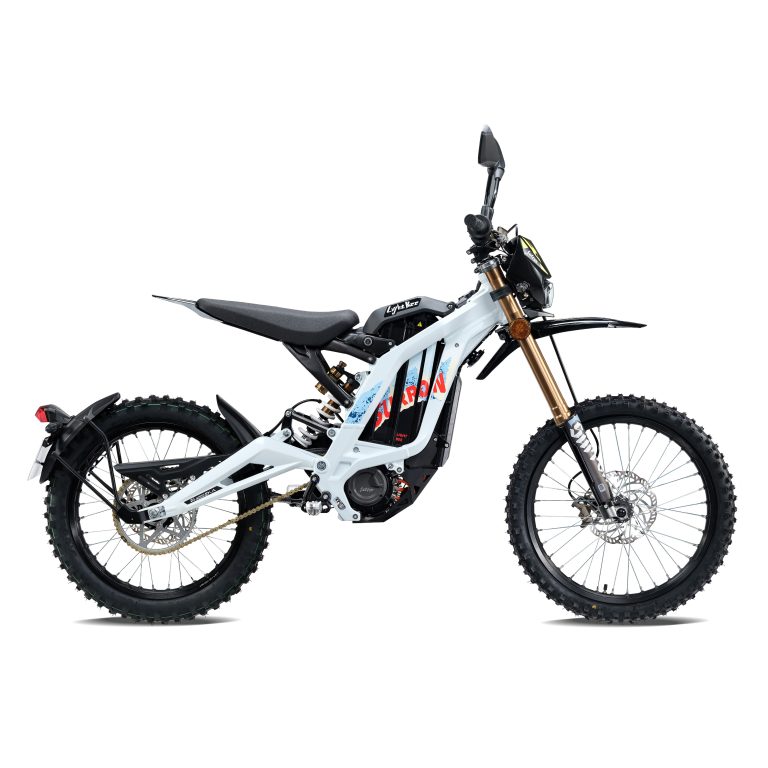

Hind 4 990 € Light bee X L1e ( tänavalegaalne mudel , vastab liiklusseaduse nõuetele ja omab sertifikaati, et osaleda liikluses. Vajalik mootorelleri juhiluba )
Rataste transport üle Eesti !
Võimalik osta :
Svea järelmaksuga
TF Bank järelmaksuga
Liisi järelmaksuga
Tehnilised andmed:
| MOOTOR | |
| Tüüp : | PMSM |
| Jahutus | Õhkjahutus |
| KONTROLLER | |
| Kontroller Tüüp: | X Version Sine Wave |
| Mõõtmed: | 240mm x 110mm x 50mm |
| Kasutus lülitused: | Eco and Sport |
| MOOTOR TOITE SYSTEM | |
| Volt: | 60V (DC) |
| Võimsus / Lõpp võimsus: | 3,000W / 6,000W |
| Vääne @ 1000RPM: | 35.40Nm |
| Sertifikaadid | |
| Tänavalegaalsus: | |
| Light Bee X: | EI |
| Light Bee X L1e: | Jah |
| Transmissioon | |
| Ülekanne: | 1:7.6 |
| Transmission: | Rihm & 420 Veokett |
| ELEKTRILISED KOMPONENDID | |
| AKU: | 60V 40A Liitium aku176 Panasonic |
| Aku eluiga: | 500 laadimist (peale seda väheneb) |
| Laadija: | 10A |
| Laadimise aeg: | 2.5-3.5 H |
| USB Ühenduvus: | USB-2.1 A |
| Spidomeeter: | LCD Spidomeeter |
| Tuled | LED |
| Masin | |
| Raam & Kiige: | Alumiinium |
| Kahvel/ esimene amort: | KKE or DNM, seadistatav |
| Tagumine amort: | KKE or DNM seadistatav link süsteem |
| Rataste tüüp ja suurus: | 19 x 1.4 Kodar velg |
| Rehvi suurus: | 70/100-19 Tagumine / esimene |
| Distants ühe akuga: | 100km @ 32km/h sõltuvalt maastikust |
| Kaal: | 47kg (Pluss aku) |
| Max kandevõime | 100kg |

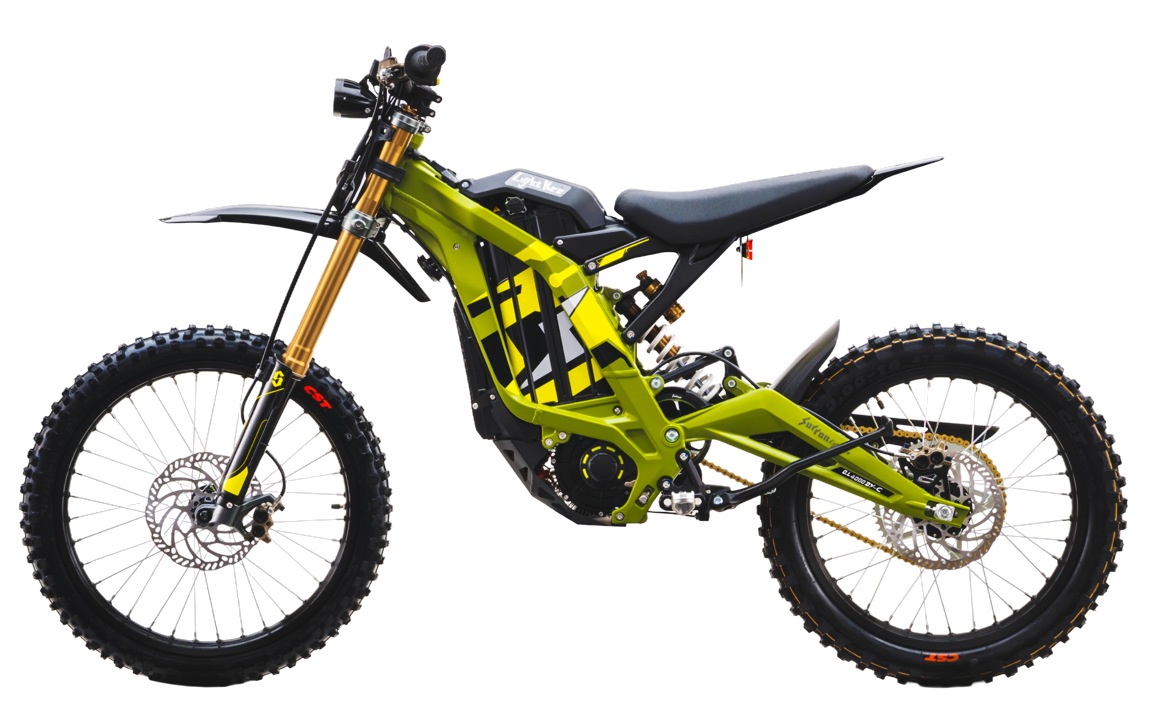

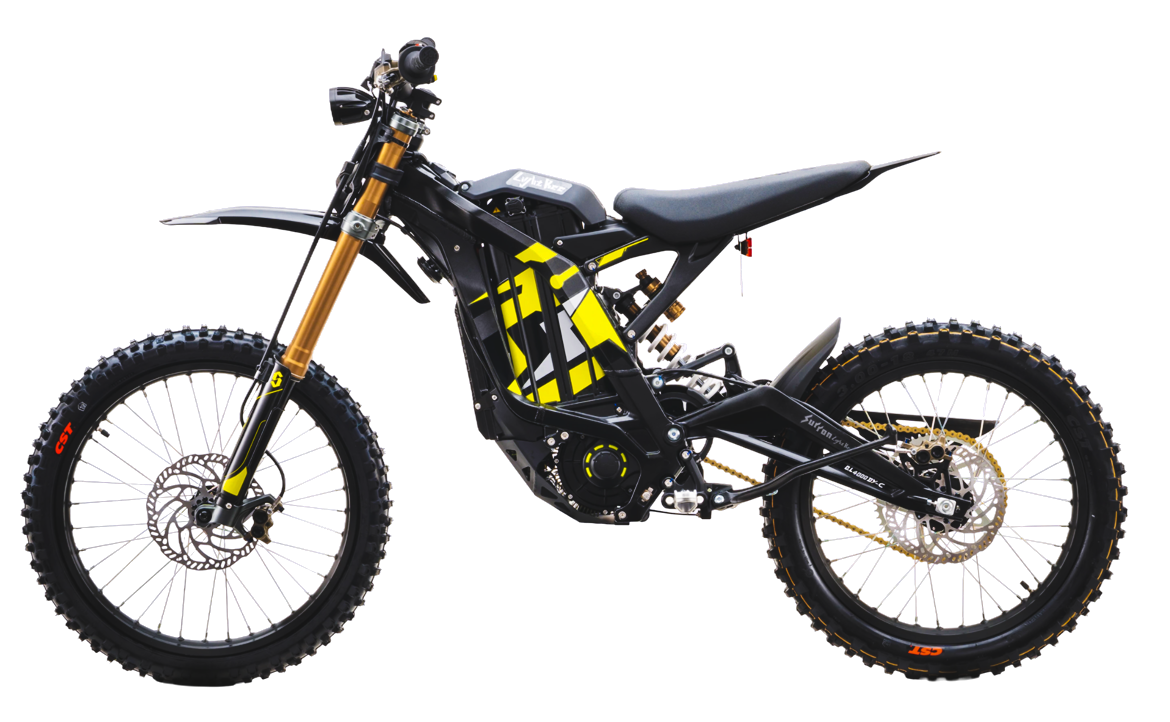

Sur-Ron Light Bee X ülevaade
The Electric powered SUR-RON LB X Series Dual Sport E Dirt Bike promises advanced fun on all terrain. 60V and more than 6kW of peak power from a removal Panasonic Lithium ion battery pack. Forged light weight alloy frame combined with hi-spec components, total weight just 47kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point. Aimed at youth to adult, with a climbing ability of over 45° it offers hours of near silent fun with a range of 20 to 60 miles per charge, depending on mode. Top speed 45 mph +, Fast Re Charge 2.5 to 3.5 hours. Full UK technical, spares and marketing support.

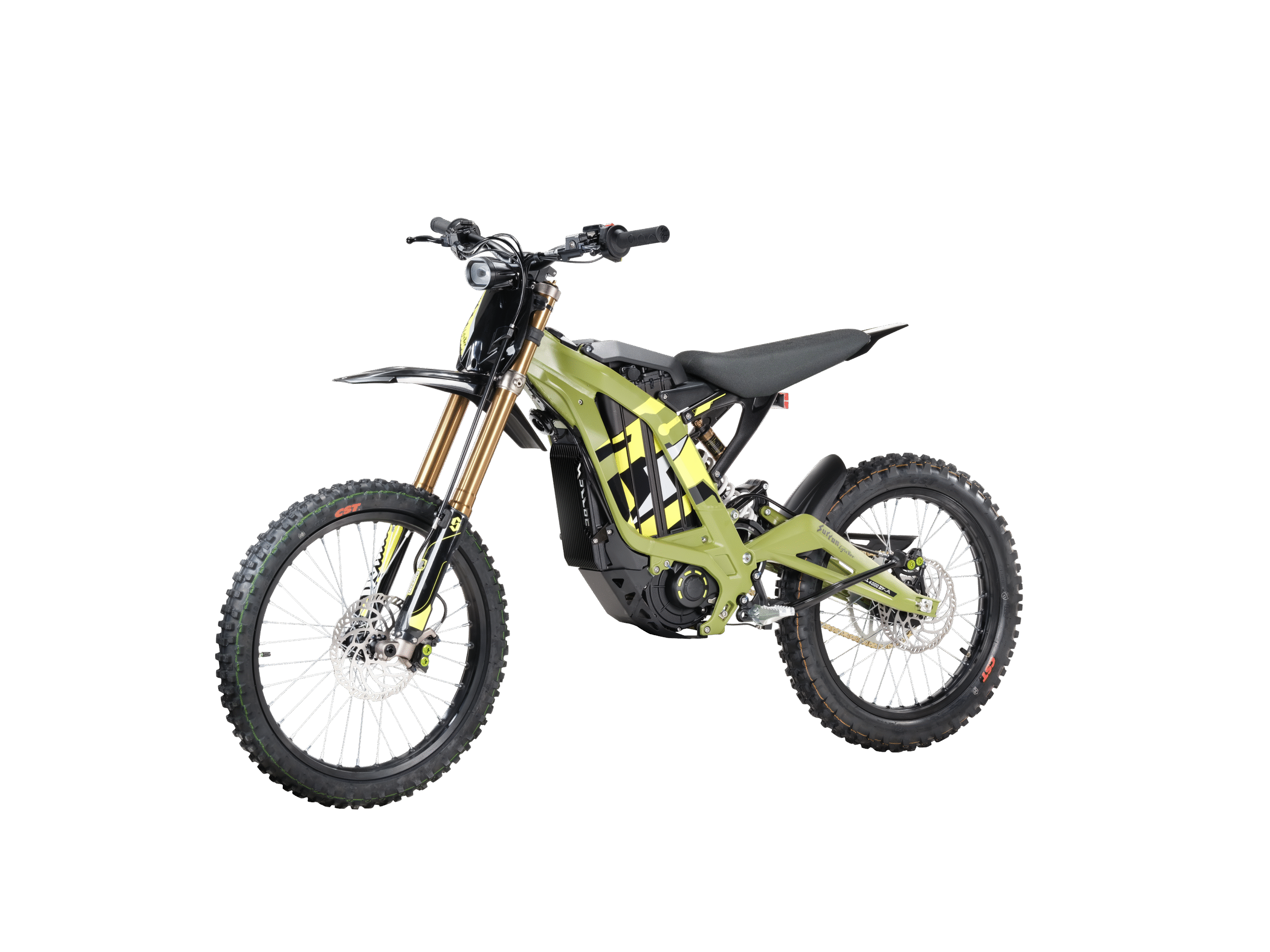

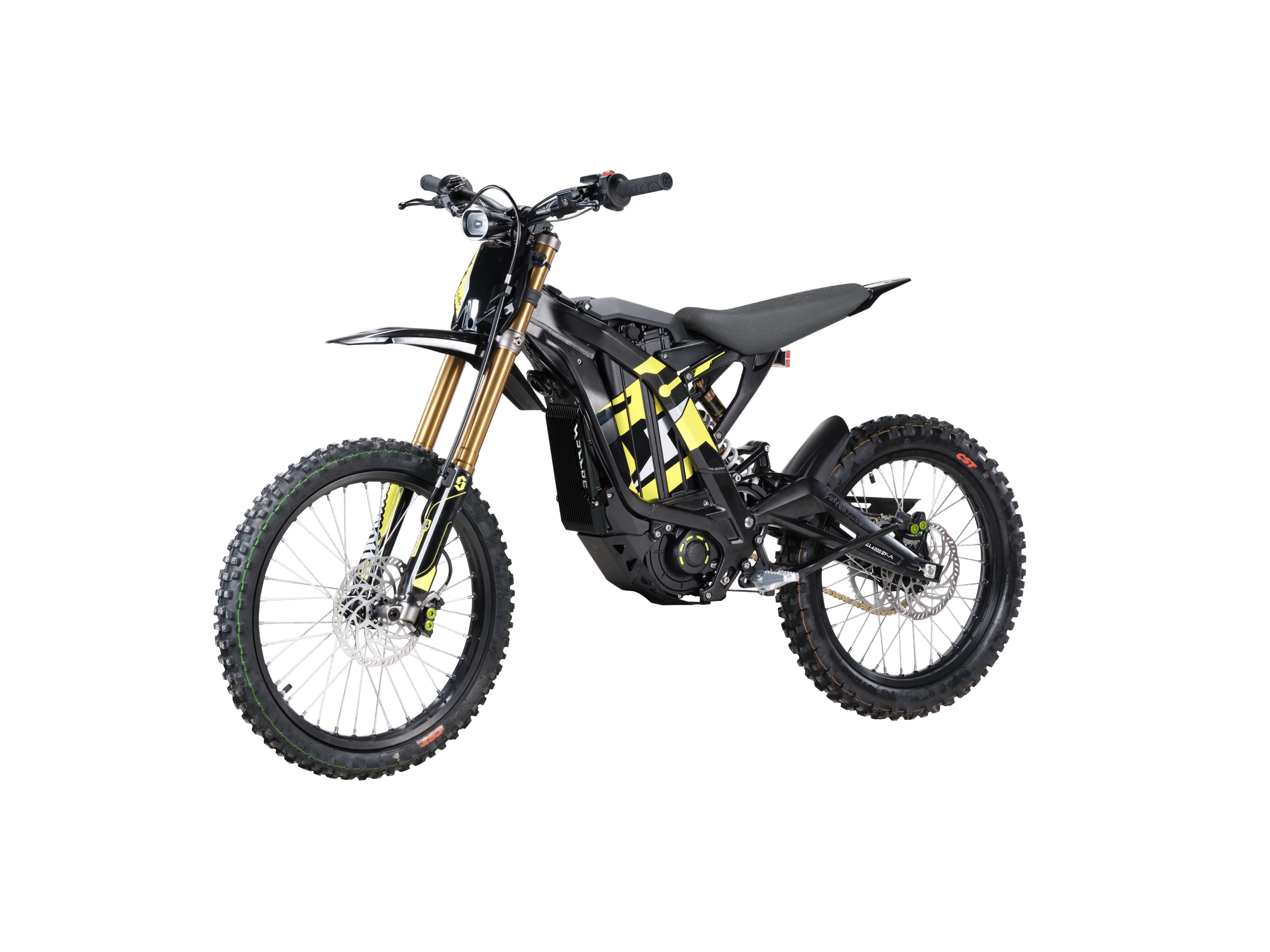

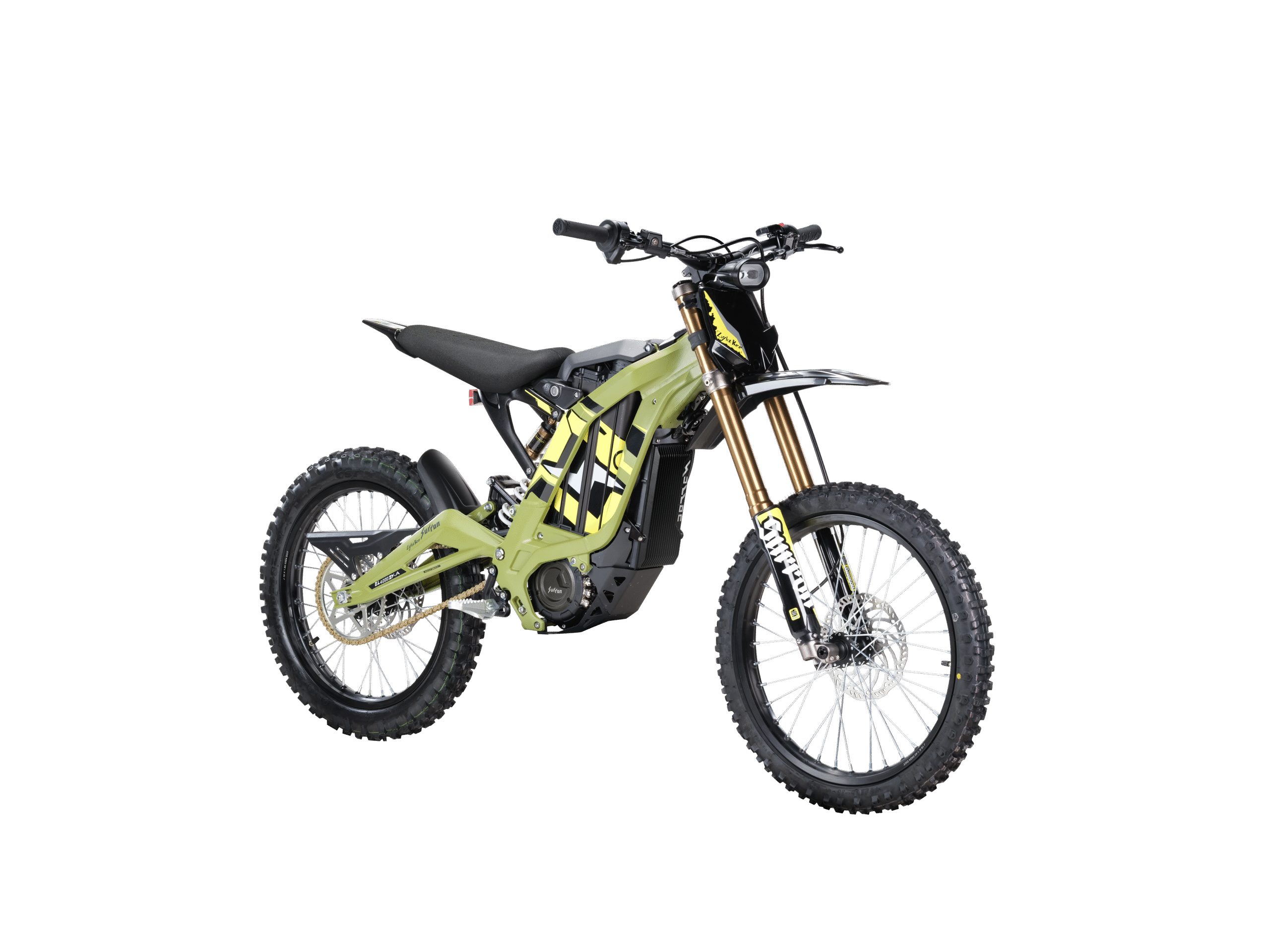

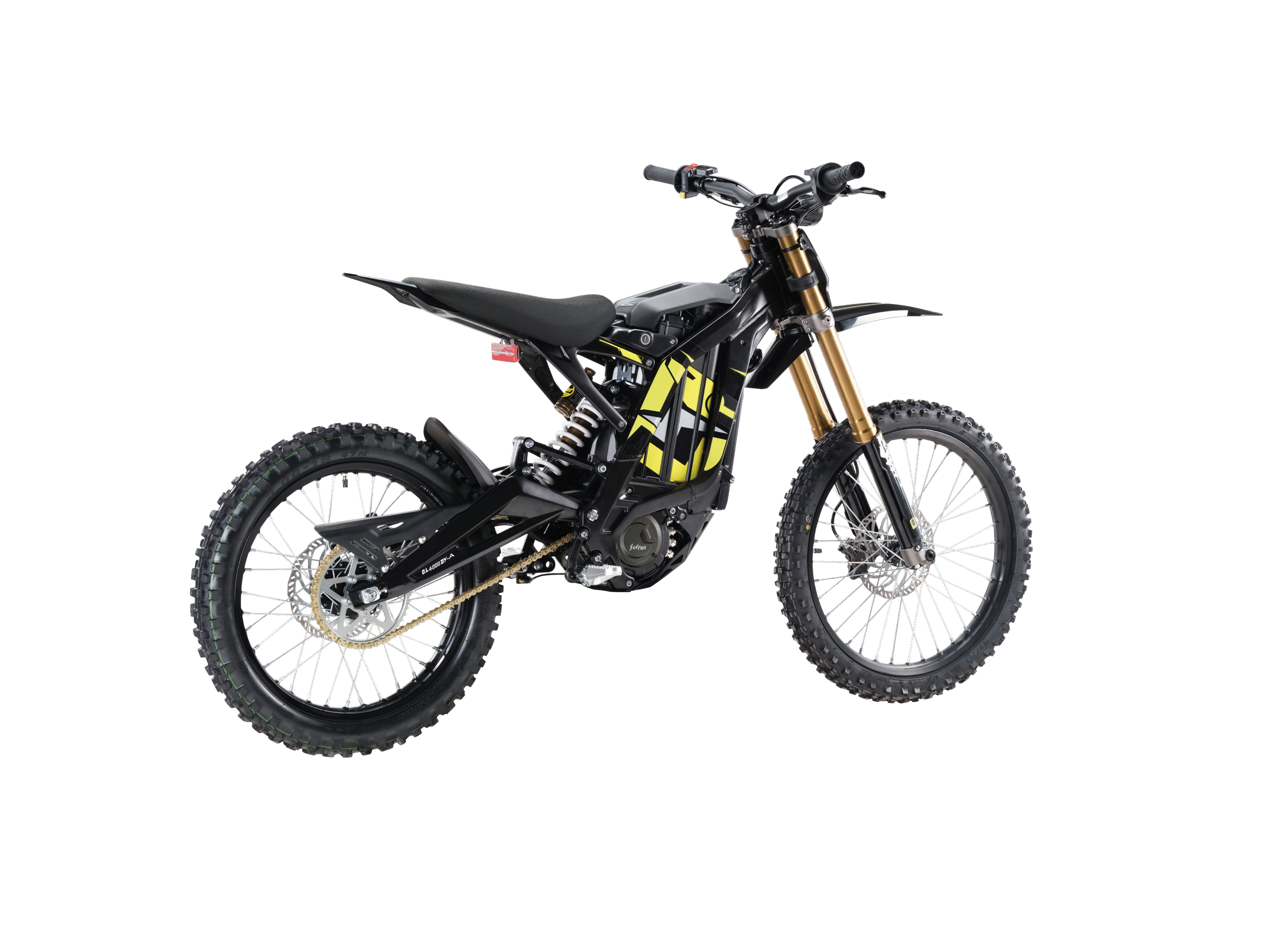

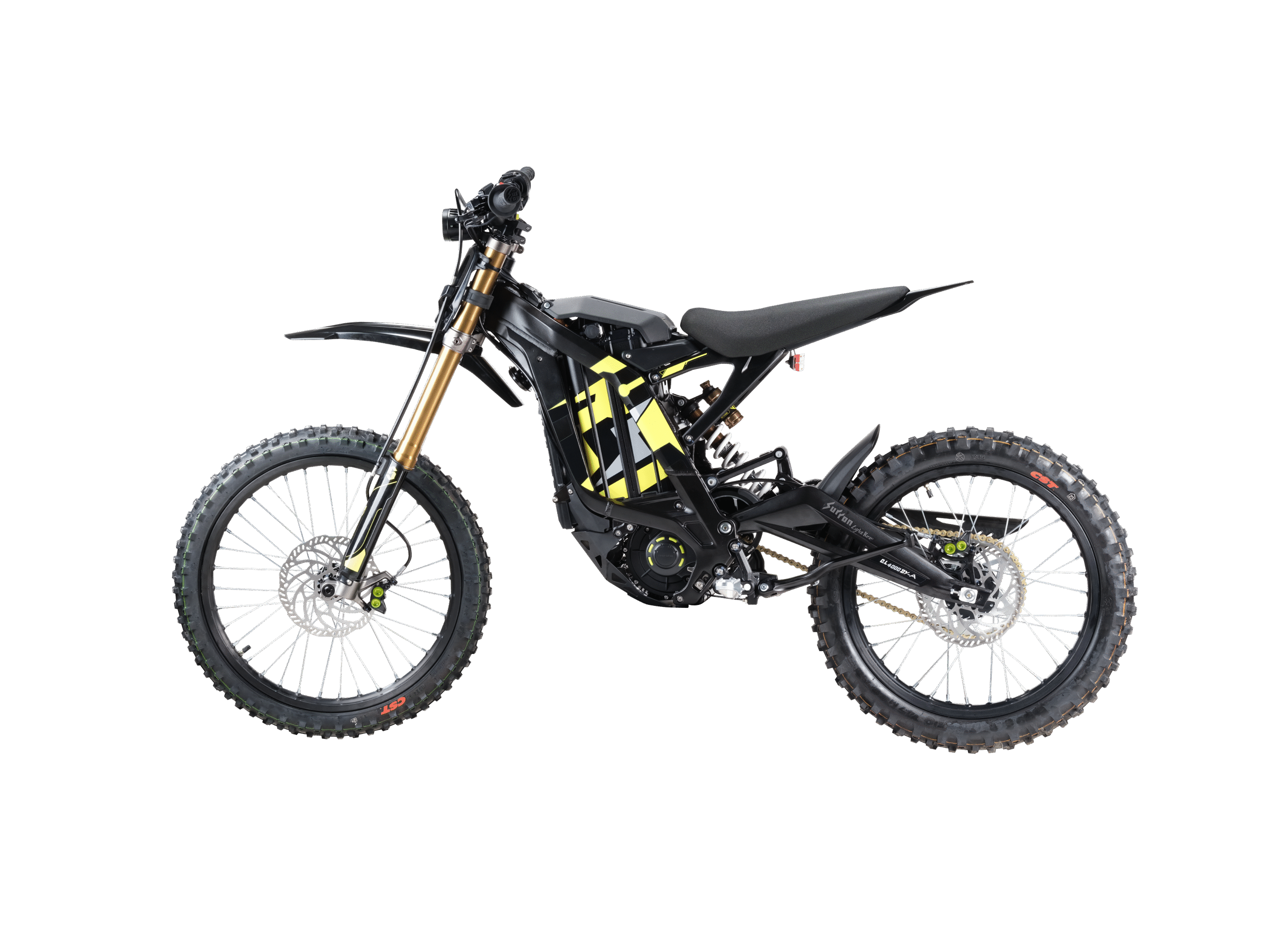

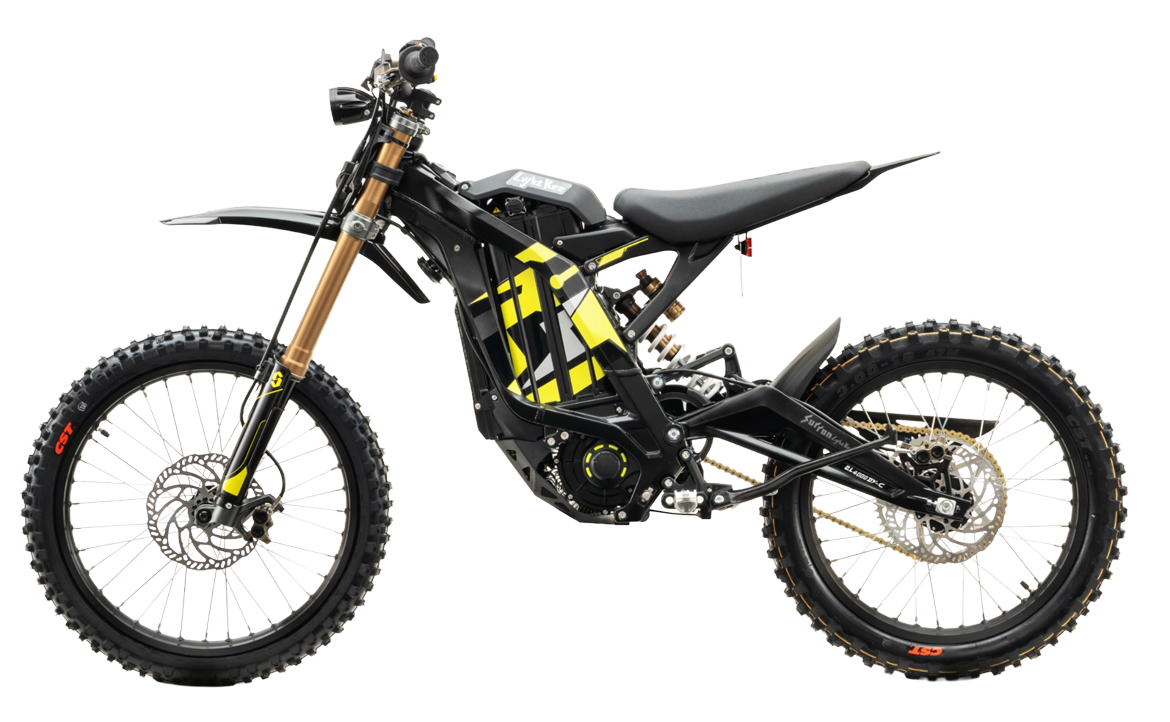

All colours of the LB X-Series Dirt Bike come complete with a front fender. *In the additional images of the black Sur-Ron LBX, the front fender shown comes as standard – the rear hugger and chain guard are optional.*
The bike comes equipped with a factory fitted GPS tracker – features include real time tracking, theft alerts, geo fence security zones & the ability to track your Sur-Ron bike from your phone and/or computer.*
| Motor | |
| Motor Type: | PMSM |
| Mounting Position: | Mid |
| Weight / Motor External Diameter: | 7.0kg / 180mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 95.60% |
| Cooling Method: | Air-Cooled |
| Controller | |
| Controller Type: | X Version Sine Wave |
| Dimensions: | 240mm x 110mm x 50mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco and Sport |
| Motor Power System | |
| Rated Voltage: | 60V (DC) |
| Rated Power / Peak Power: | 3000W / 6000W |
| Rated Torque / Peak Torque: | 10.2Nm / 39.00Nm |
| Motor Shaft Output Torque @ 1000RPM: | 35.40Nm |
| Rated Rotation Speed: | 4300rpm |
| Peak Efficiency: | 97.8% |
| Range of Efficiency (≥80): | 1.4Nm - 21.5Nm |
| Certificates | |
| Road Legal: | No |

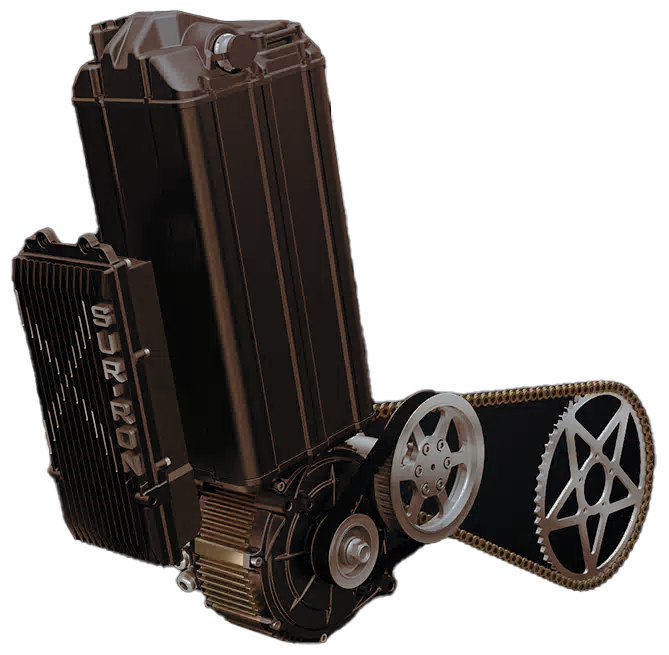

Võimas ja töökindel mootor
The Sur-Ron’s torquey mid drive motor and high power to weight ratio effortlessly accelerates riders to speeds of up to 45 – 50 Mph (80kmh) leaving all competitors in its wake.
High Performance Motor
Maximum rotate speed 5400 rpm
Protection level IP55
FOC Sine Wave Controller
Multi-Curve Compound Algorithms
Full encapsulation structure
High-power battery pack
High rate 18650 cell
Safe and reliable
